Hummingbird^® EQ Overview

The hummingbird^® EQ (Equilibrium) is a complete HVAC management and air purification system which helps engineering, facility directors and asset managers manage their HVAC systems to deliver heating, cooling and superior air quality while saving energy and extending the life of the equipment investment. EQ keeps your HVAC and air environment in perfect equilibrium. Hummingbird^® EQ utilizes Ai, IOT and real-time data collection along with the latest in indoor air quality monitoring and our patented air purification technology including Deep Fiber^™. Humminngbird EQ Scales to any size HVAC system. 3 Core Areas of Hummingbird^® EQ are:

• Hummingbird^® IAQ: Indoor Air Quality Monitoring.
• Hummingbird^®AP: Air Purification
• Hummingbird^® AI: HVAC AI (HVAC Monitoring & Energy Efficiency)

Note: The individual Hummingbird^® Products (AP, IAQ & AI) may be purchased separately.

Patented Quality made in the USA

Hummingbird Core Functions:

Click on the Tabs to the Left to learn more about each major feature.

Hummingbird^® Indoor Air Quality Monitoring

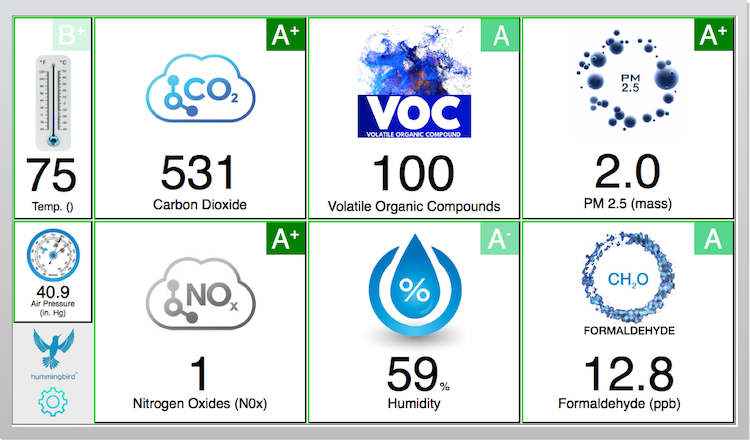

The hummingbird^® EQ comes with an Indoor Air Quality visual monitor. One is included per EQ which monitors one HVAC zone. Additional IAQ monitors can be added on a per room basis, ie. one for each school room, hospital room, etc. The hummingbird^® IAQ monitor gives immediate feedback to occupants in the indoor environment as to the air quality with comprehensive coverage of VOC, particulate and C02 levels as well as temperature, humidity and pressure. The system is also cloud based and sends data up to Energy Cloud for air quality certification and long-term analysis of the environment.

IAQ Monitor Features:

• Measures 18 different air quality and environmental variables
• Live Real-time Data
• Cloud Enabled: View from any smart device
• Historical Trending Charts
• Frequency Reporting: 30 sec/1,2,5,10,15 min
• Text & Email Threshold Alerts
• Built-in Data Storage: 5+ Years
• Color High Lumen 5" screen
• Touch screen
• Auto dim screen

IAQ Sensors:

• C0₂
• VOC’S
• Formaldehyde
• Particulates 1PM, 2.5PM, 4PM, 10 PM (Mass)
• Particulates 1PM, 2.5PM, 4PM, 10 PM (Number)
• Particulates Average Size
• NO_x
• Temperature +-2ºC
• Humidity +-2%RH
• Barometric Air Pressure
• Light(Lux)

Connectivity Options:

• Wifi
• Ethernet (POE)
• Cellular

Indoor Air Quality Certification

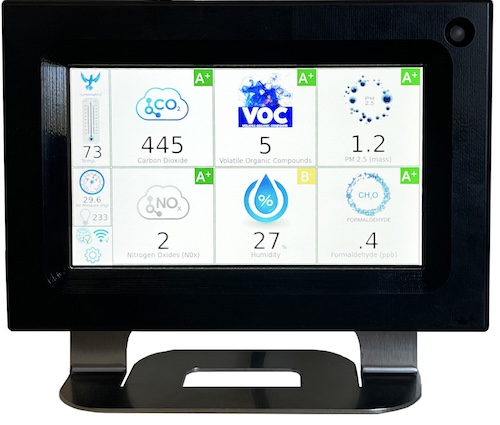

Hummingbird^® IAQ Monitor (Desktop in Black) Hummingbird^® IAQ Monitor (Wall Mount Example)

Click on the Tabs to the Left to learn more about each major feature.

Hummingbird^® Air Purification

The hummingbird^® EQ includes the most advanced air purification on the market. Initially used in high end labs and clean rooms, Energy Cloud® is bringing the technology to the general commercial market. Hummingbird^® patented technology has been tested and proven at USC’s BSL Level 3 lab / Keck School of Medicine to deactivate COVID-19 on the first pass through the system. As opposed to other systems that claim to deactivate in 30 minutes or 60 minutes, hummingbird^® instantly eradicates the virus as it passes through the system. Testing was done in one of the most comprehensive bio-aerosol tests ever performed with real-life airflows in a 5-ton Air Handler HVAC system.

Air Purificaton Features:

• Deactivates COVID-19 99.99%+ on first pass
• Deactivates COVID-19 Variants**
• 99.9% Particle Reduction (>=3.0 Microns)(1st Pass)
• 97.2.% Particle Reduction (.3 Micron) in (1st Pass)
• VOC Reduction down to 1 ppb
• Viral, Bacterial & Allergan Reduction
• Destroys Ozone, CO and Formaldehydes
• Reduces Odors

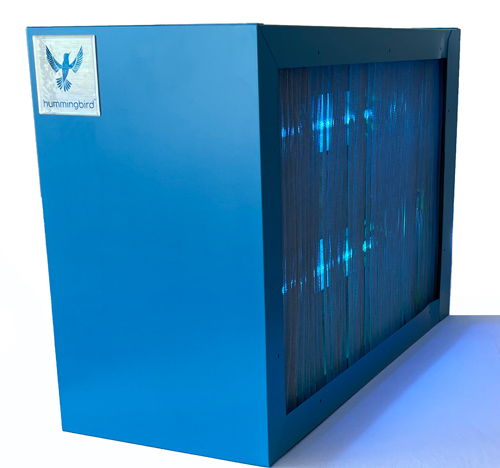

Hummingbird^® AP10000 In-Duct

Hummingbird^® AHU (Air Handler Unit)

Click on the Tabs to the Left to learn more about each major feature.

Hummingbird^® AI

The hummingbird^® AI, part of the hummingbird^® EQ system, is a complete HVAC live monitoring system that keeps your Air Conditioning unit ‘humming’ with optimum efficiency. The system measures and monitors all of the HVAC unit’s vitals including temperatures, humidity, air flow and refrigerant charge. Hummingbird^® AI then continually checks the HVAC system with this data to make sure it’s running efficiently and alerts the customer and customer’s HVAC contractor with text or email alerts when a system is failing to run properly. This helps the Customer save energy, money, and extend the unit to its full useful life by making sure it’s running to its proper manufacturer specifications.

Most commercial HVAC systems only operate at 65% of their intended efficiency and residential systems only to 57%¹. The hummingbird AI will help identify the inefficiency as soon as there is an issue, so that your HVAC contractor can immediately help correct issues. By bringing your system up to it’s intended operating efficiency, substantial energy savings can be realized. Hummingbird^® AI is suitable for both existing and new systems.

Hummingbird^® AI Features:

• Detect HVAC issues in real-time
• Save energy & money by ensuring efficiency
• Energy Cloud® portal access to view HVAC systems real-time data
• Text and Email alerts on system performance/ issues
• Benchmark and Report on each HVAC system
• Continuous Monitoring instead of snapshot in time
• Extend Equipment life to its full potential

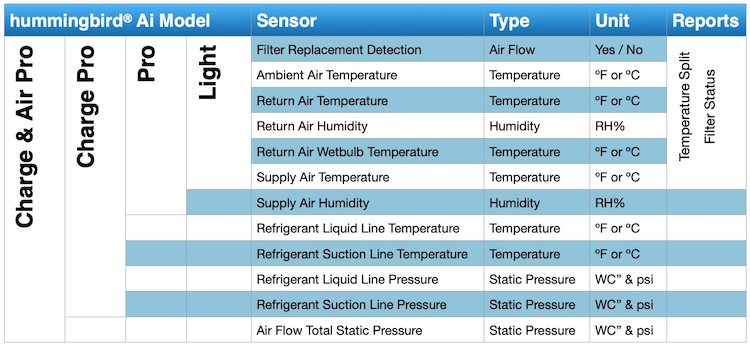

 Hummingbird^® AI Model Matrix

¹ National Comfort Institute

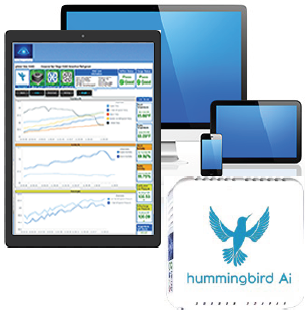

Hummingbird AI Cloud Enabled

Click on the Tabs to the Left to learn more about each major feature.

Hummingbird^® EQ Specifications Matrix
